Isolated USB to RS-232 Extender Over Cat.5 (2000M)
Isolated USB to RS-232 Extender Over Cat.5 (2000M)
UTS-i101

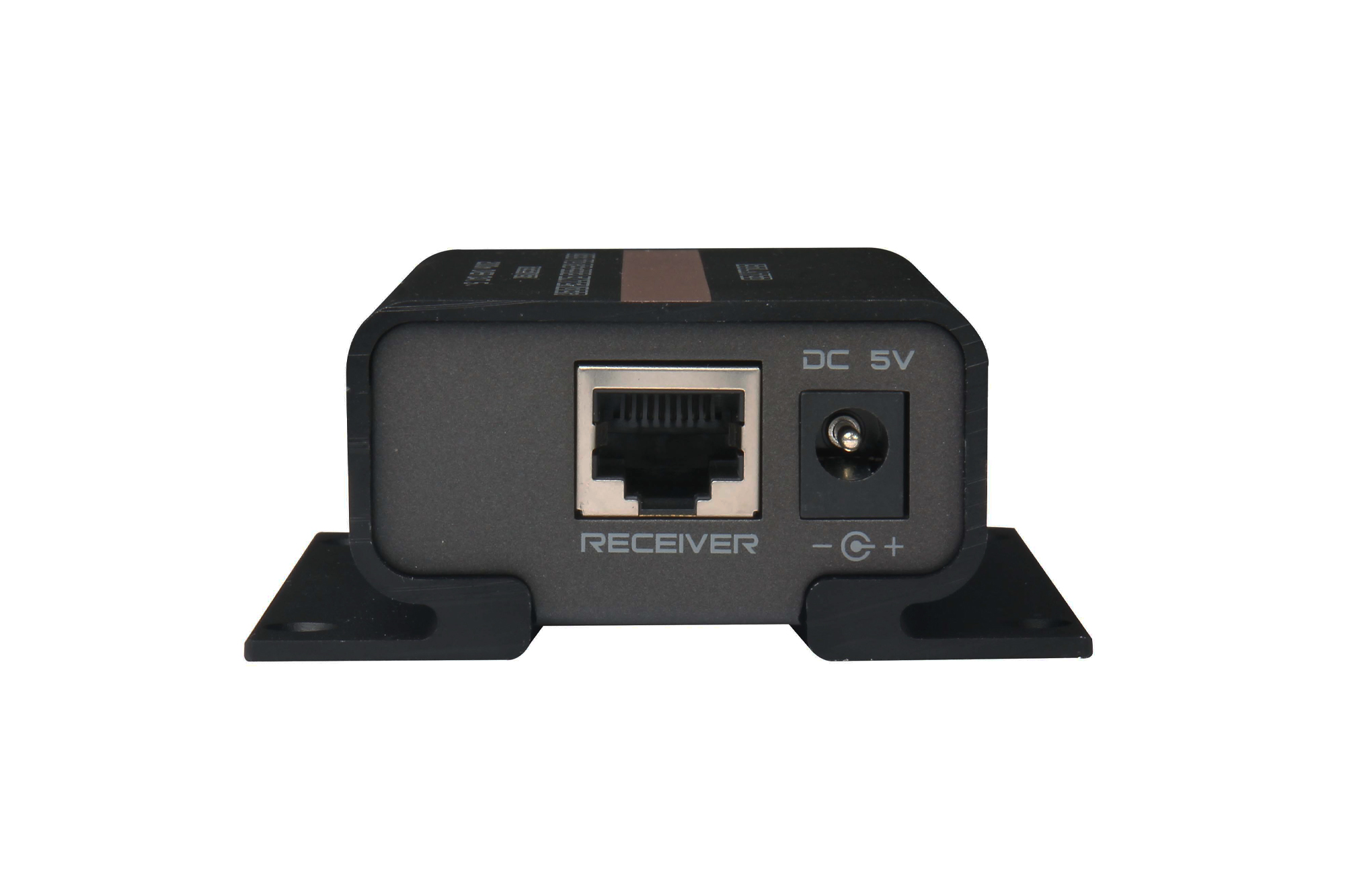

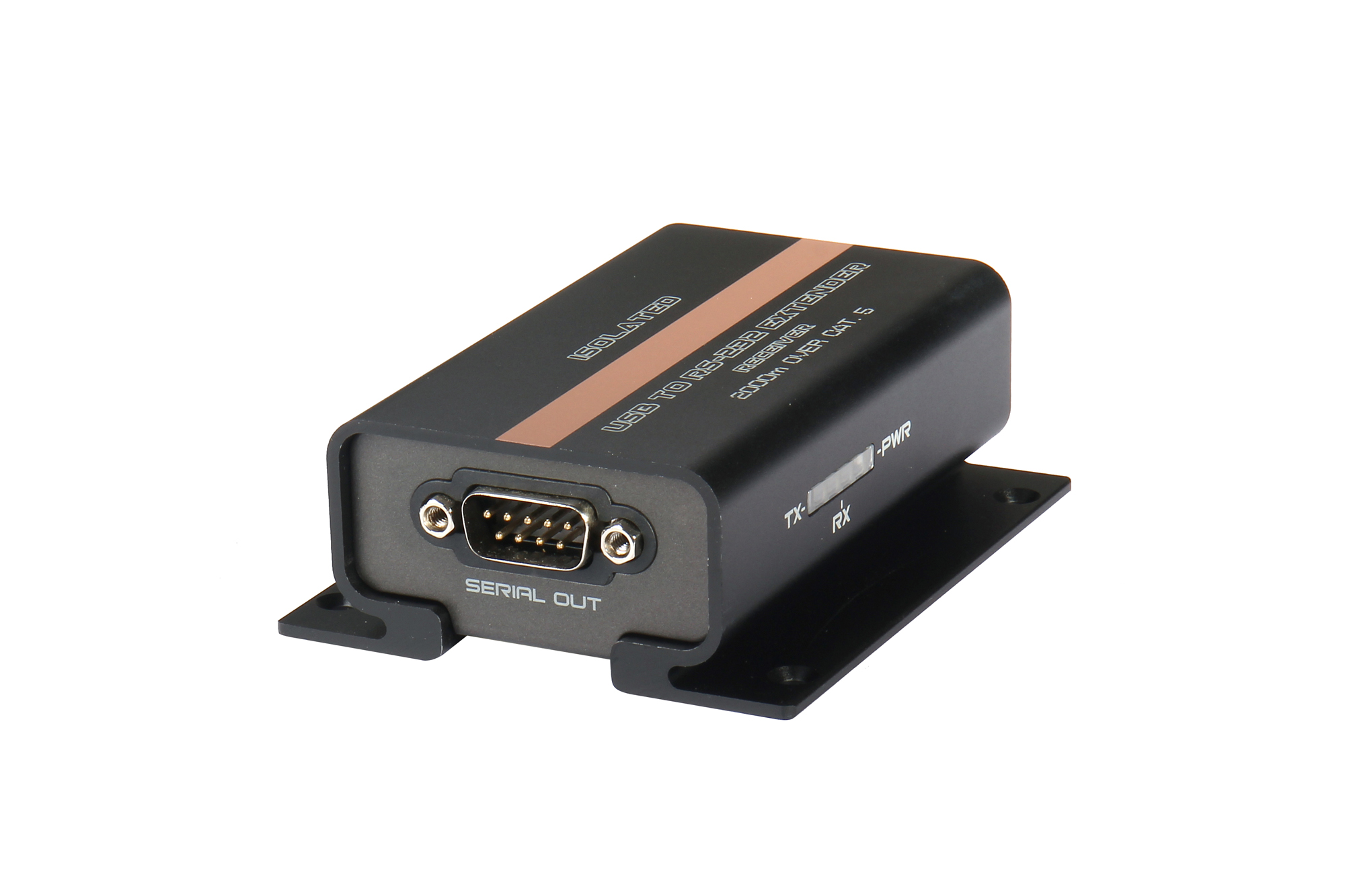

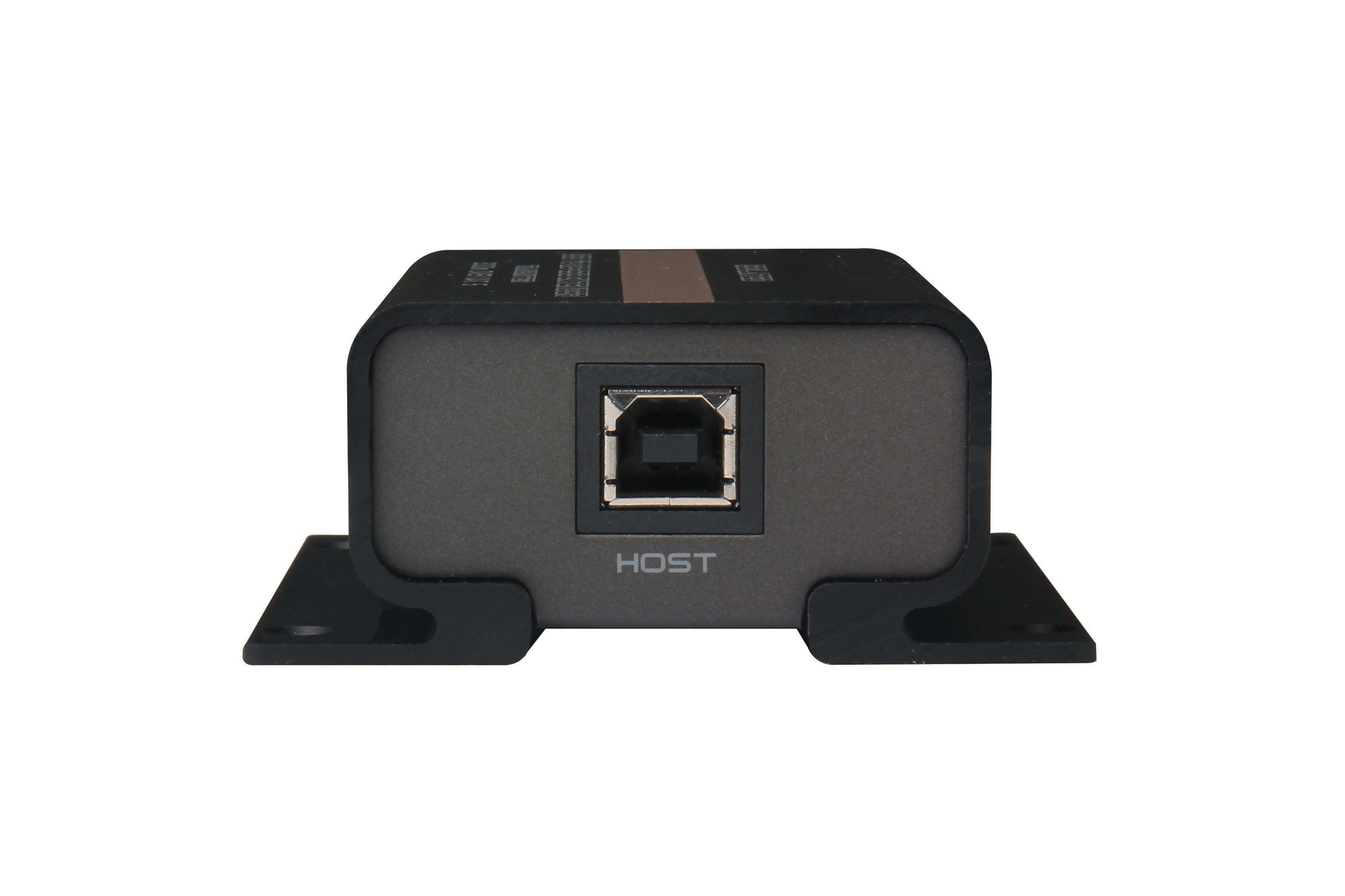

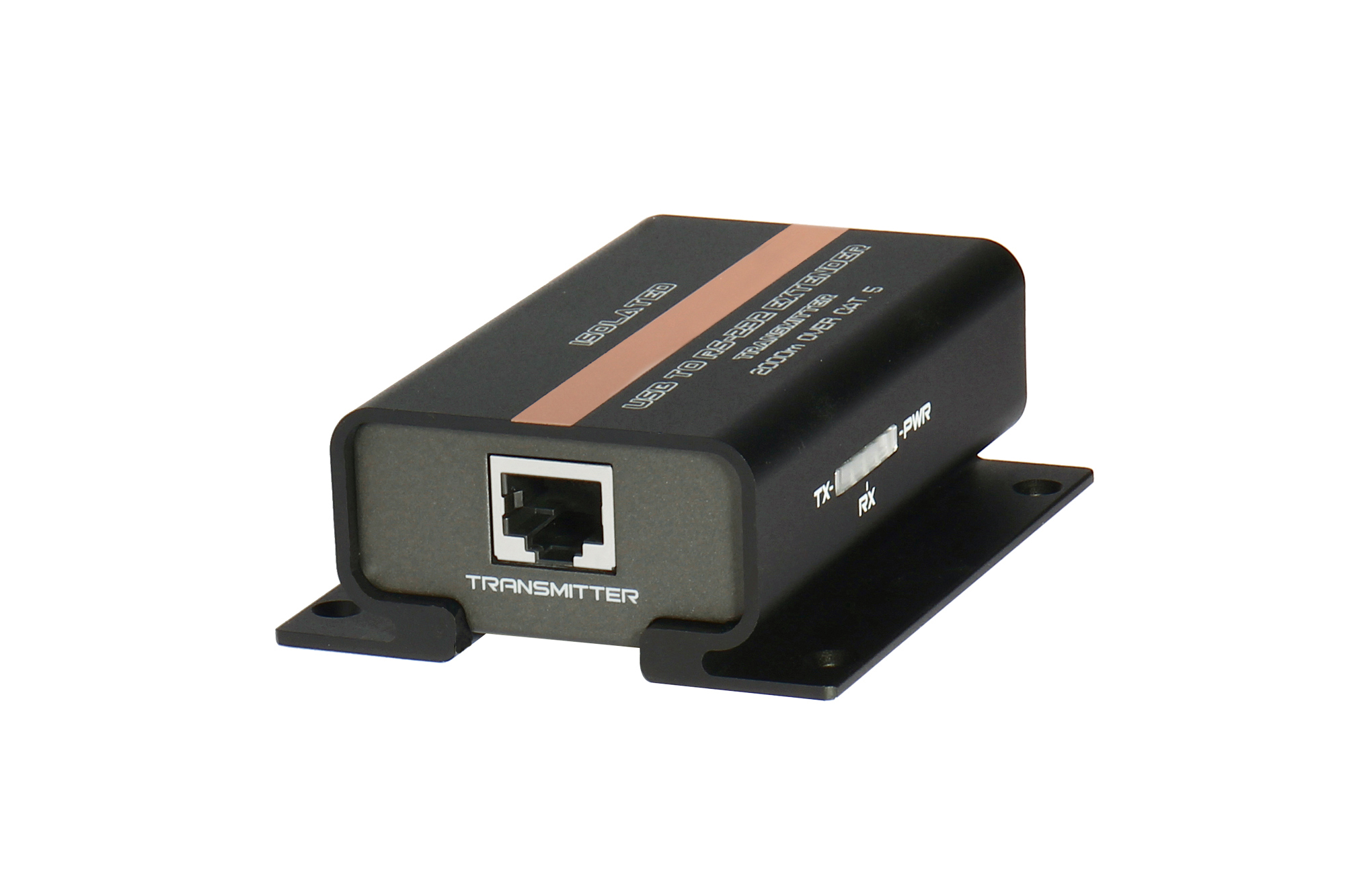

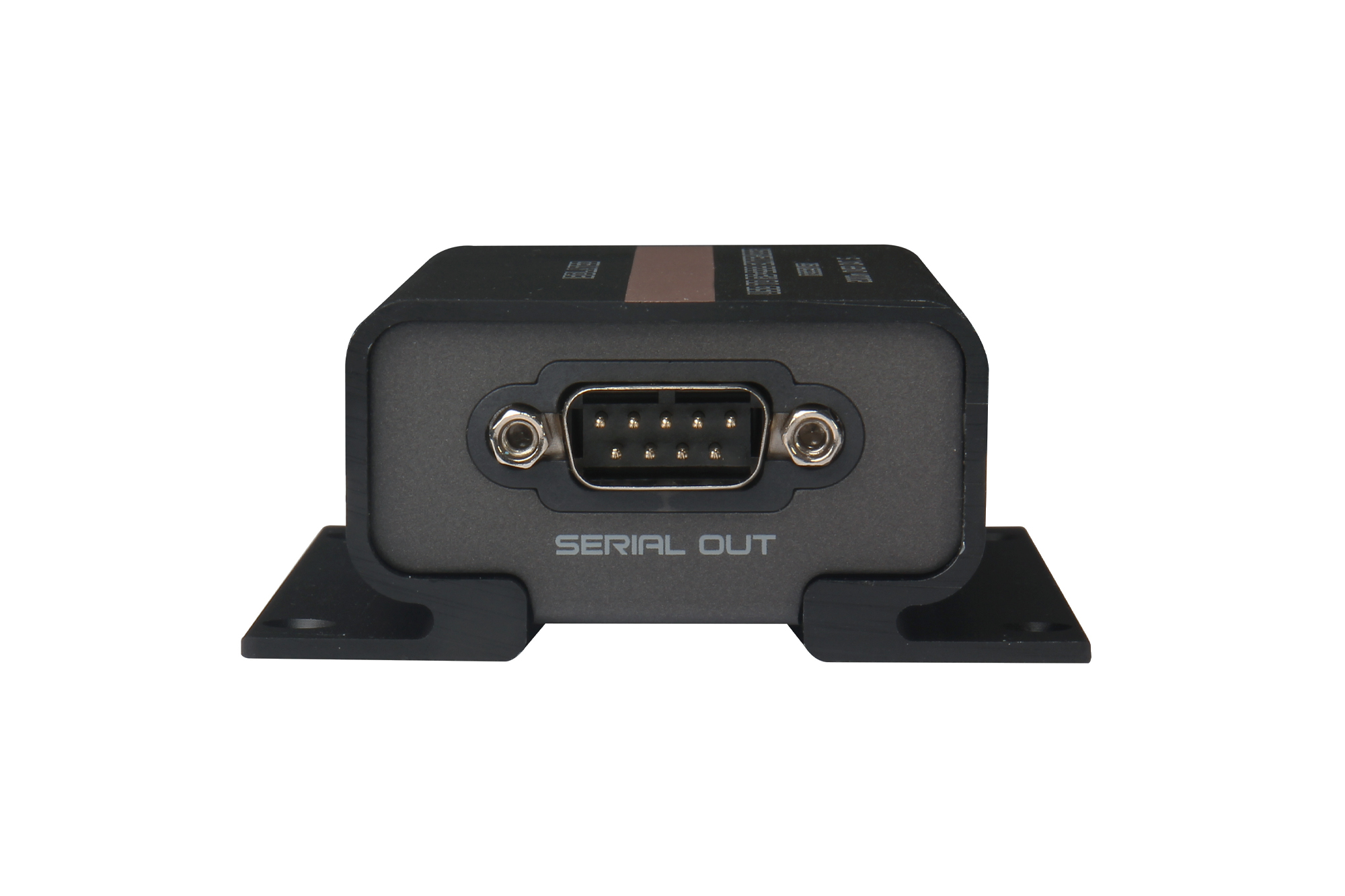

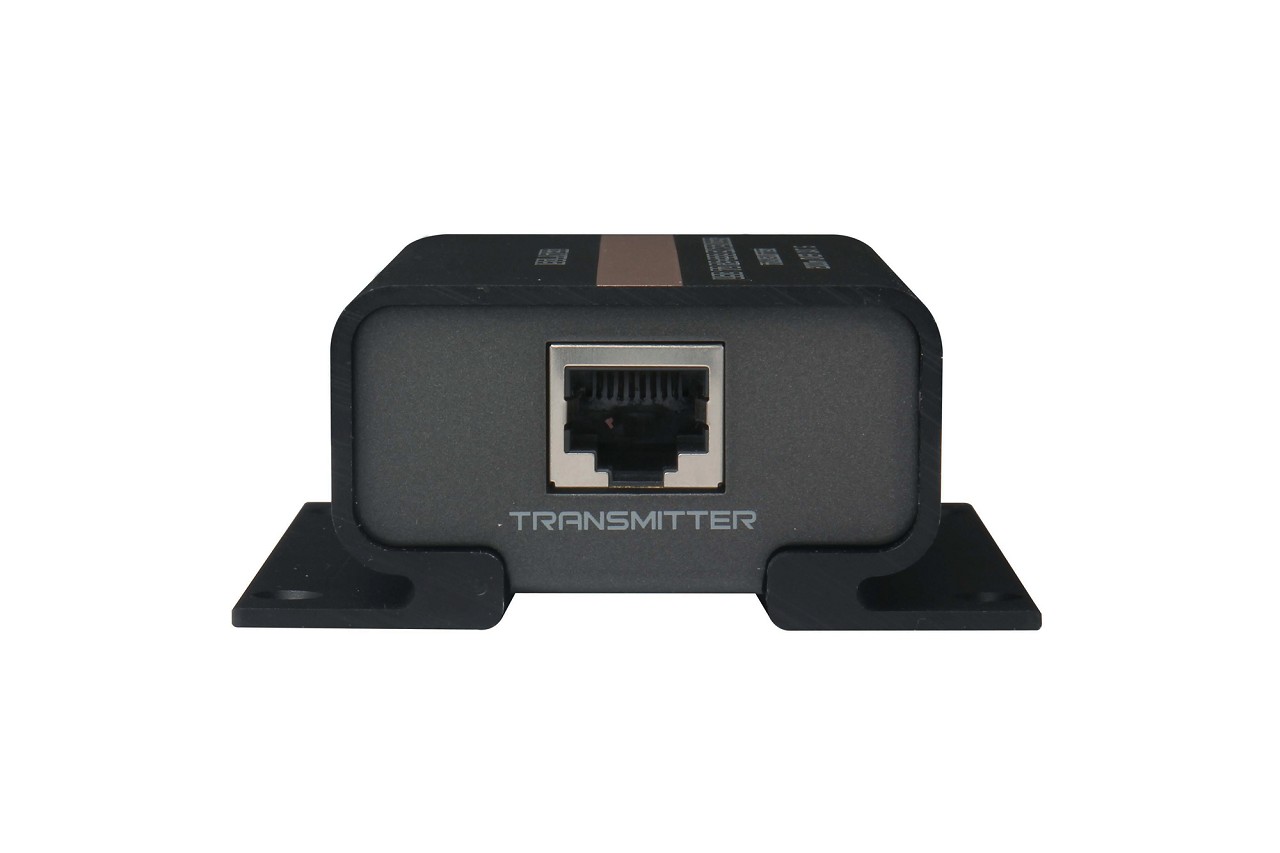

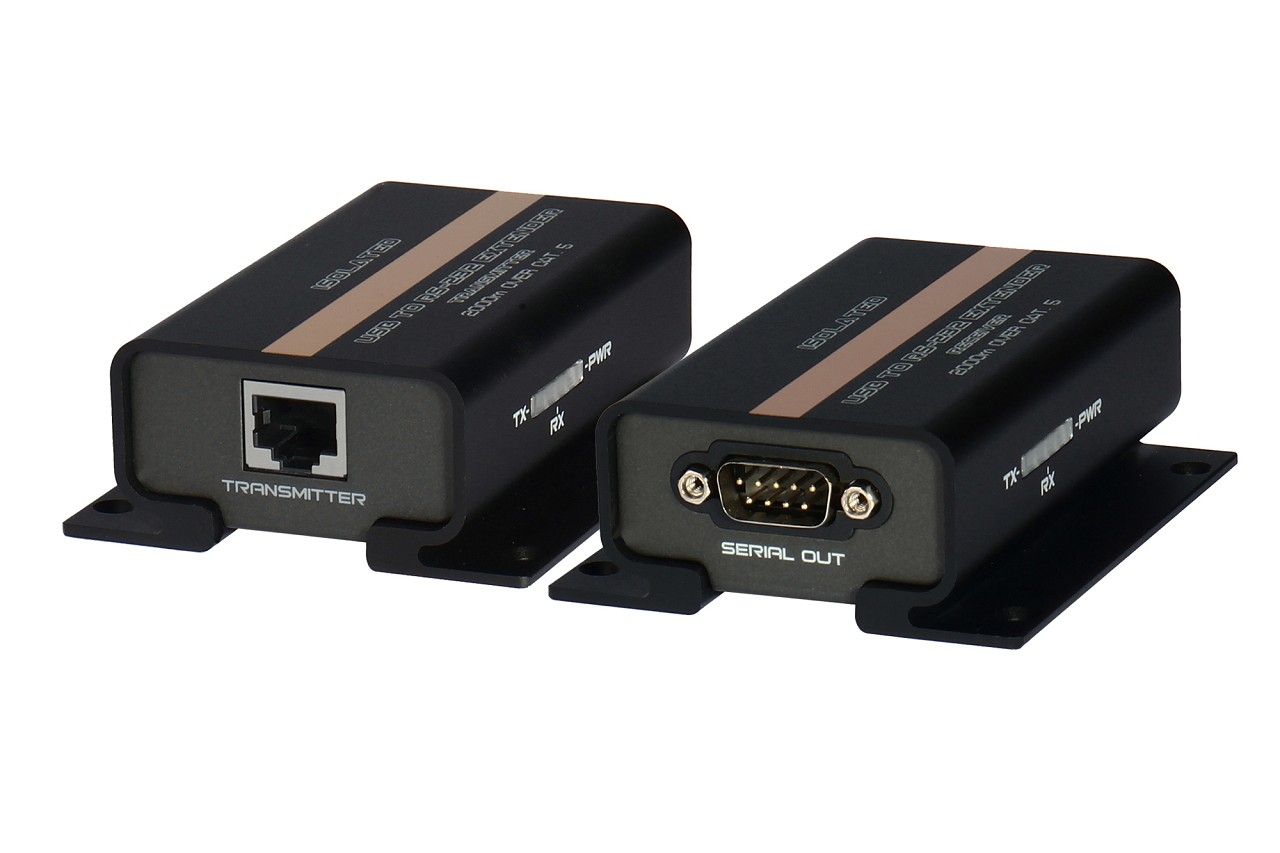

A low cost and durable serial solution that will extend your RS-232 via a single standard Cat.5 / 5e / 6 UTP cable. It features 2.5kV isolation to ensure sensitive controls and devices for long extending serial signal won’t be damaged. It provides full-duplex remote access and control of any RS-232 protocol device. The isolated USB to RS-232 Cat.5 extender kit consists of a local transmitter and remote receiver. Allows you placing RS-232 devices in any location you want and to control them remotely up to 2000M (6600 feet).
Feature
Specification
Download
- Compatible with all RS-232 protocols
- Extend RS-232 peripherals up to 2000M upon transfer rate at 115kbps. (1700M upon 230kbps; 700M upon 921.6kbps)
- Fully Compliant with USB specification 1.1 and 2.0
- Supports transfer rate up to 921.6kbps
- Supports ±15kV (air), ±8kV (contact) ESD protection; Isolated ground loops
- Supports 40A (5/50ns) & Peak Pulse Power 250 W (8/20 us) Surge and Transient spikes protection
- Supports 2.5kV Isolation; Bus powered for local transmitter, external power for remote receiver
- Compatible with Windows XP SP3 / Vista / 7 / 8 / 8.1 / 10 / 11; Windows Server 2003 / 2008 / 2008R2 / 2012 / 2012R2; Mac OS 8.6, Linux 1.5.0 or higher
- Rugged & cambered Aluminum shell and wall mountable
