DisplayPort Extender over Cat.6 40M
DisplayPort Extender over Cat.6 40M
DP-CAT2E

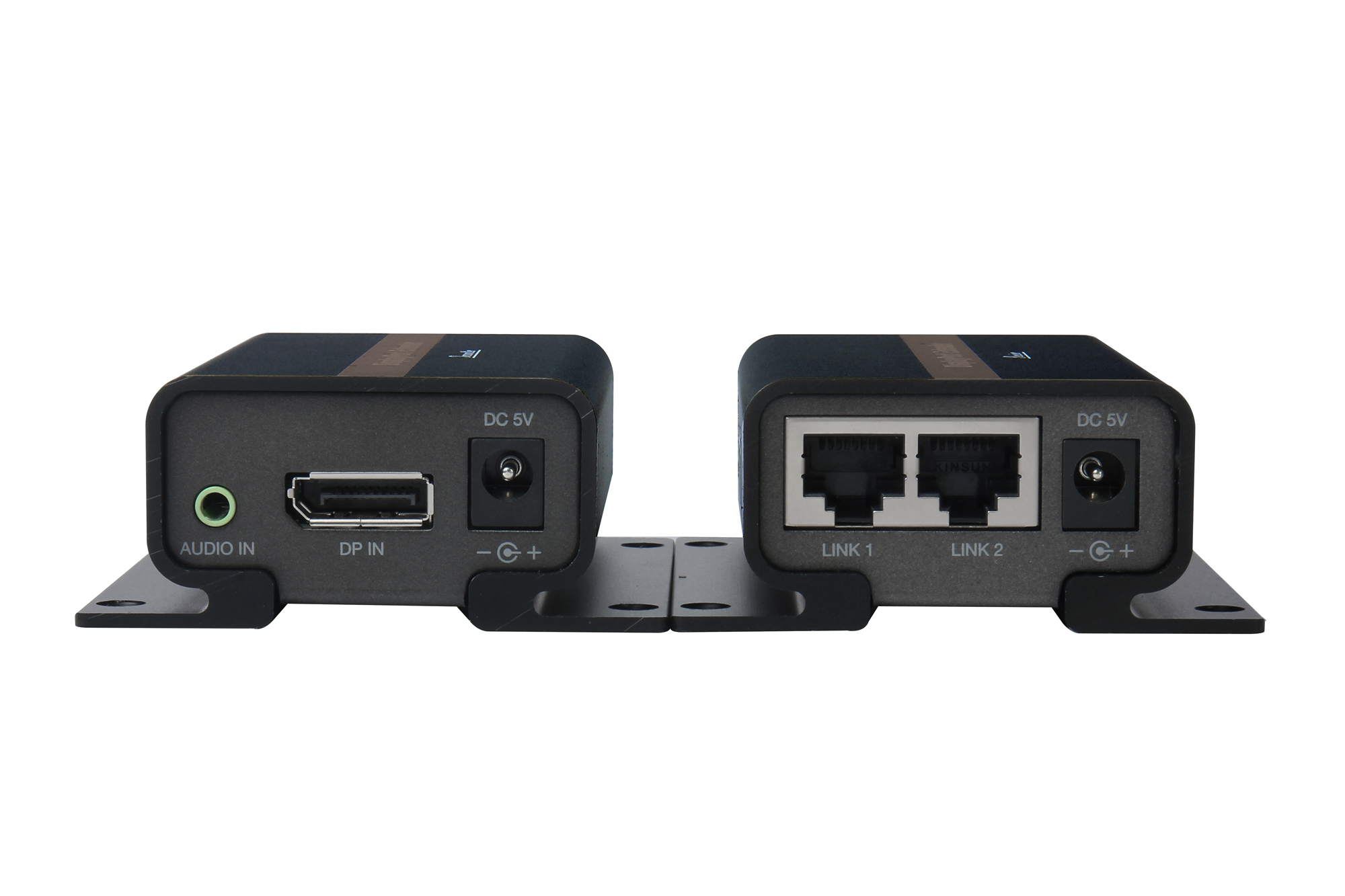

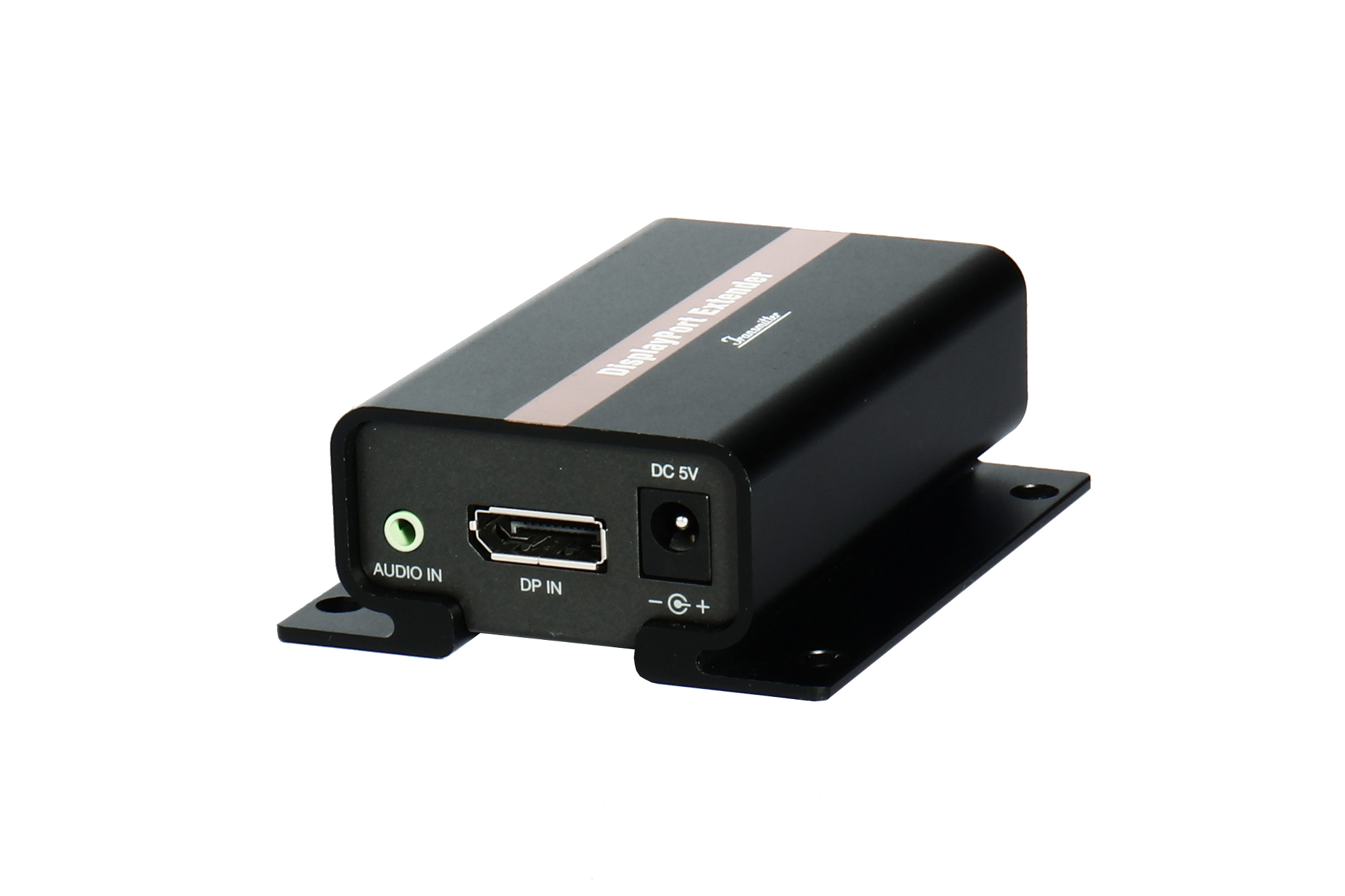

The DisplayPort Extender over CAT.6 allows the installation of a Hi-Def display up to 40M away from a DisplayPort source using two CAT.6 cables. Resolutions can be up to 3840 X 2160 @30Hz over two CAT. 6 24AWG cablings. HDCP is also supported. The Receiver is powered by the 2nd CAT.6 cable that extends the DisplayPort signal from the Transmitter, eliminating the need for an external power supply on the Receiver.
Note: the receiver may have power provided from the transmitter upon CAT.6 cabling connection. When the receiver is connected to an Active DisplayPort adapter, it requires an external power supply of 5V1A.
Note: the receiver may have power provided from the transmitter upon CAT.6 cabling connection. When the receiver is connected to an Active DisplayPort adapter, it requires an external power supply of 5V1A.
Feature
Specification
Download
- Extends DisplayPort audio and video up to 40M over 2 CAT.6 24AWG cablings
- Supports 8-Bit Deep Color; supports DisplayPort 1.1a
- Supports resolutions up to 3840 X 2160 @30Hz; 2560 X 1600 @60Hz; 2560 X 1440 @60Hz; 1920 X 1200 @60Hz;
- 1920 X 1080 @60Hz over two CAT.6 24AWG cablings.
- HDCP compliant; supports the Active DisplayPort adapters
- 16-position EQ rotary switch to compensate for cable skew, enables HPD auto calibration
- Power On LED indicator; no external power supply requirement on the receiver
- Supports 2.1 stereo audio out; Enables the DisplayPort signal transmitting to HD audio out.
- Rugged & cambered shape’s Aluminum enclosures are prefect for professional and industrial applications; surface-mountable
