USB-DS22H

USB-DS22H

2x2 USB 2.0 Data Switch

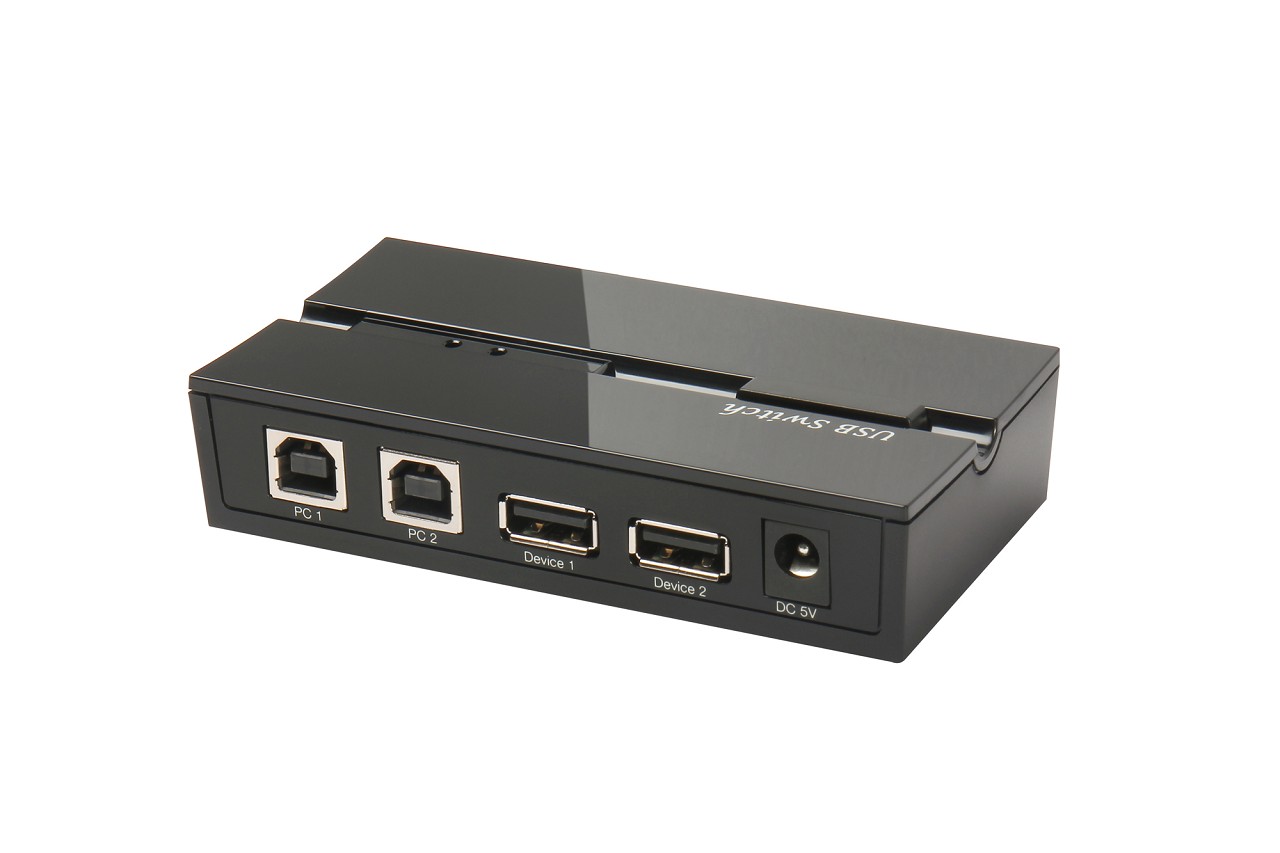

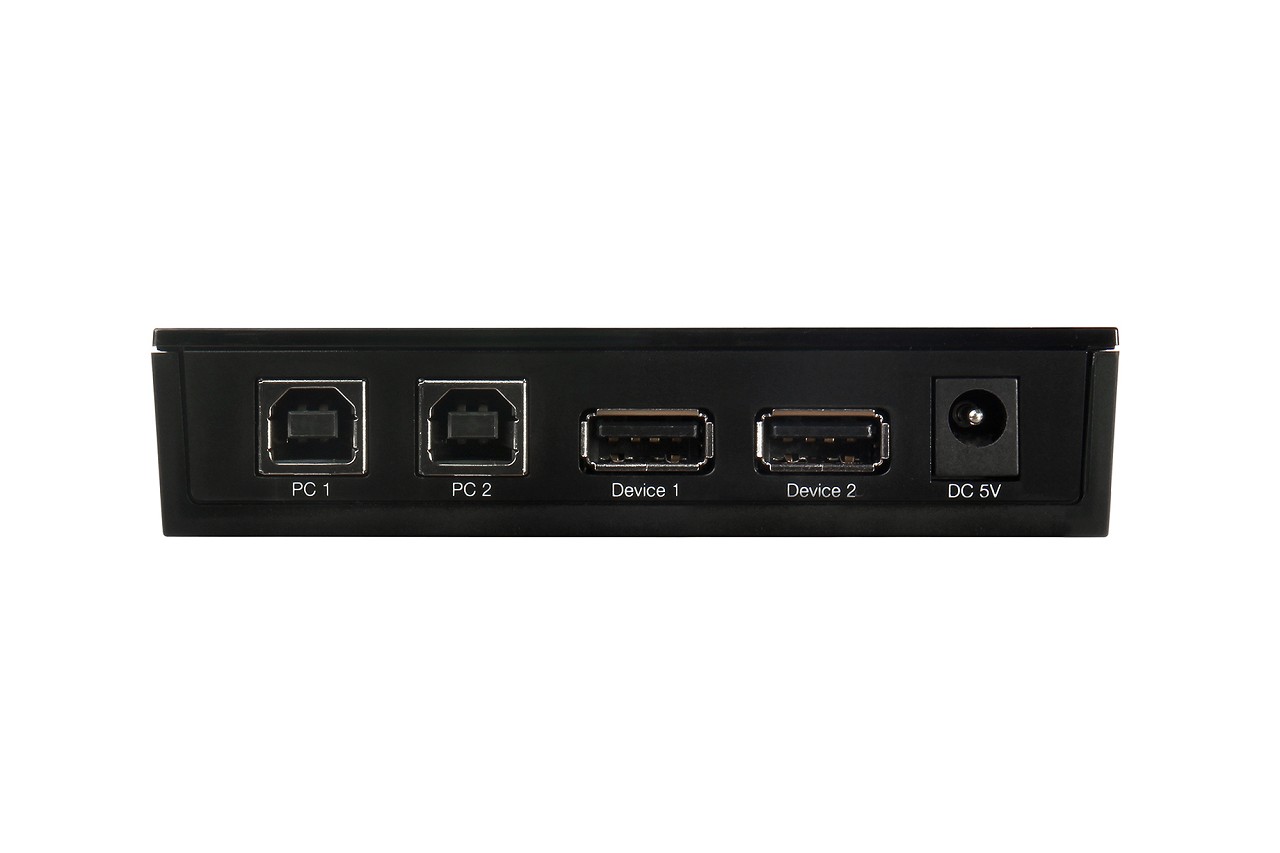

The 2x2 USB 2.0 Data Switch allows users to share 2 USB devices between 2 different computers. It is USB 2.0 compliant, supports data transfer rate up to 480Mbps and backwards compatible with USB 2.0 and USB1.1, avoiding the cost of purchasing duplicate peripherals or the hassle of swapping cables from one system to the others. Functions simple port selection via push button whether one of the two hosts is disconnected. The working memory (last channel setting) won’t be terminated no matter the unit shutdown and restarted. (Defaultsetting is switched to PC1 after powered on the unit; and then it will change to the last channel setting after restarting the unit.)

The switch can also be connected to a USB hub, to expand the number of devices you can share between the 2 connected systems, or to a USB drive enclosure or docking station, for a shared external storage solution.
  •  Feature
  •  Specification
  •  Download
  • USB 2.0 data transfer rates up to 480 Mbps
  • Fully Compliant with USB specification 1.1, 2.0
  • Enables 2 computers to share 2 USB 2.0 devices; Functions simple port selection via push button whether one of the two hosts is disconnected
  • Supports memory function, the working memory won’t be terminated no matter the unit shutdown and restarted

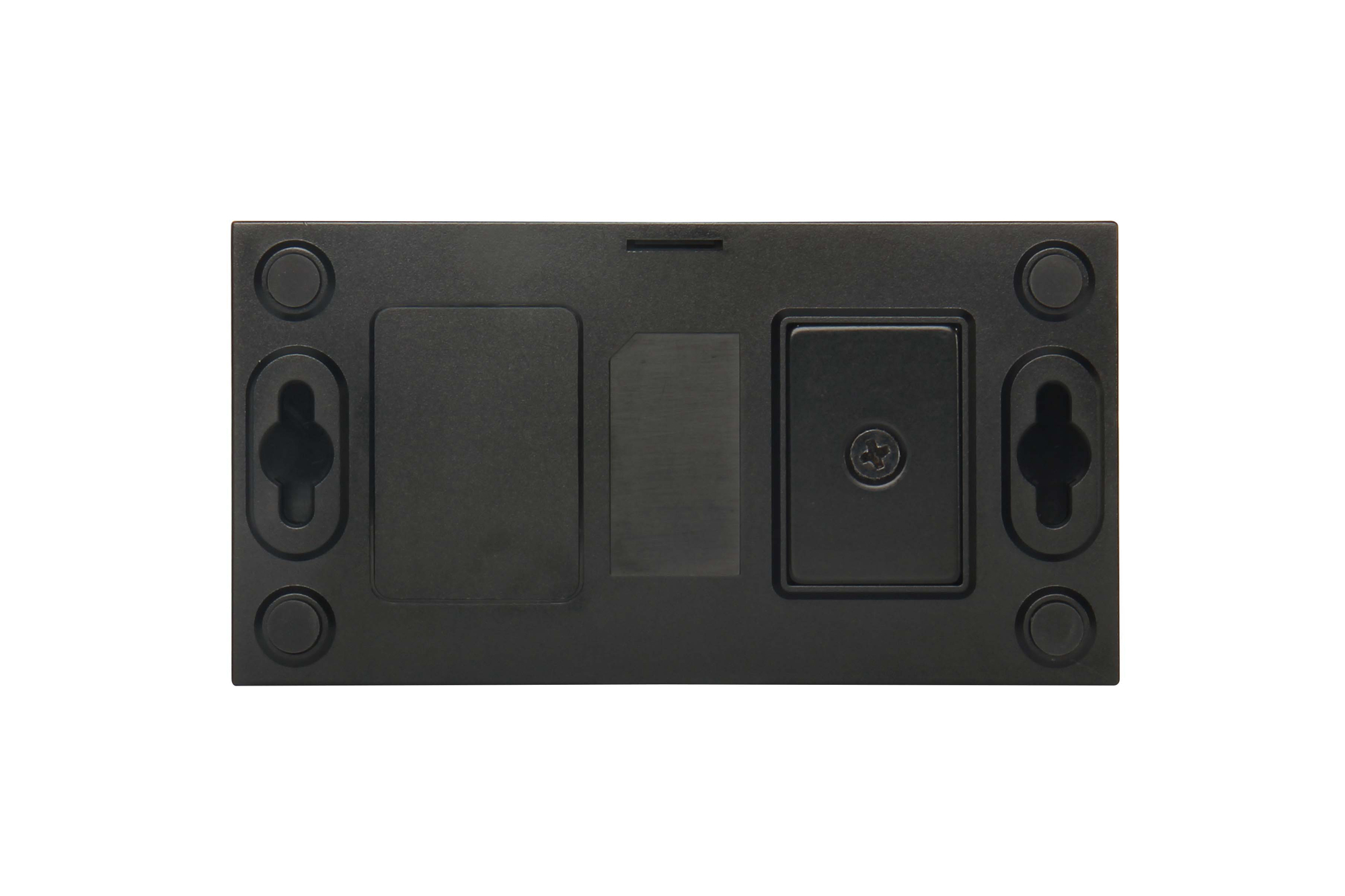

  • Easily wall mounting design (two hook holes and magnet attached)
  • Compatible OS: Windows 98SE / ME / 2000 / XP / Vista / 7 / 8 / 8.1 / 10; Mac OS 8.6 or higher
  • Plug-and-Play, no software or drivers required
