UTS-TTL5VT

UTS-TTL5VT

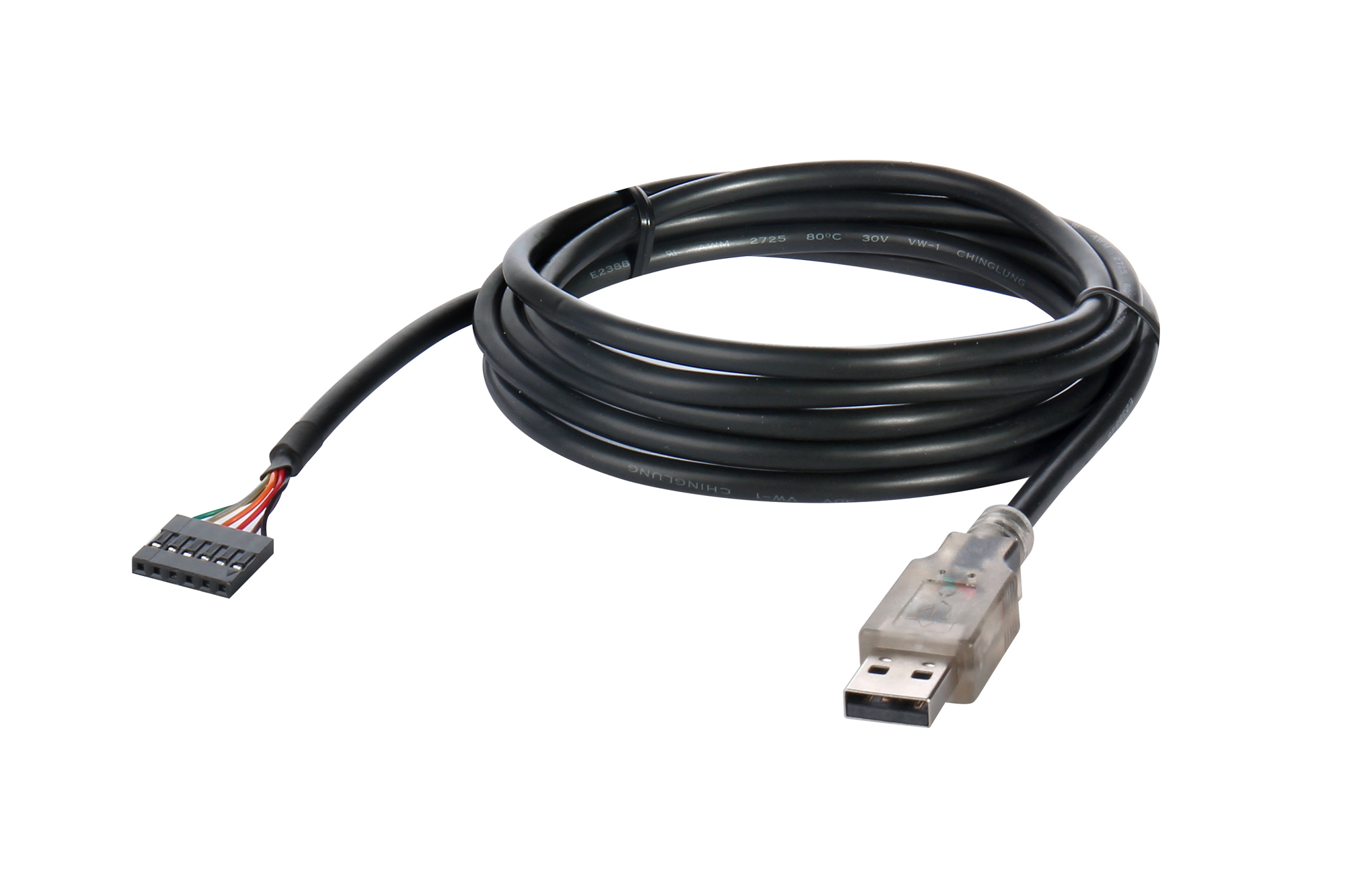

USB to UART with +5V TTL adapter

The USB to Serial UART (TTL level) adapter allows you to connect your computer through USB port and use it as a regular serial communication. All USB protocol is handled with this adapter without application programmer. This adapter is perfect for embedded systems that require a serial connection to a computer. It shows up on any Windows computer as a standard serial COM port. Any application that talks to this COM port is automatically converting to USB and back to UART to your target unit. Drivers are available for Windows 98SE / ME / 2000 / XP / Vista / 7 / 8 / 8.1; Mac OS 8.6 / OS 9.x / OS 10.x, Linux , Win CE, Win Server 2003 / 2008 / 2008R2 / 2012 / 2012R2 or higher.
  •  Feature
  •  Specification
  •  Download
  • Provides a USB to TTL Serial interface with various end connectors
  • Entire USB protocol handled by the electronics in the cable USB
  • All in one solution for USB to asynchronous serial data transfer interface
  • UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd/even/mark/space/no parity
  • Fully assisted hardware (RTS#/CTS#) or X-On/X-Off software handshaking
  • Data transfer rates up to 3 Mbaud at TTL levels
  • +5V output allows external logic to be powered from the USB port
  • Transmitting and receiving LED indicators.
  • UHCI / OHCI / EHCI host controller compatible
