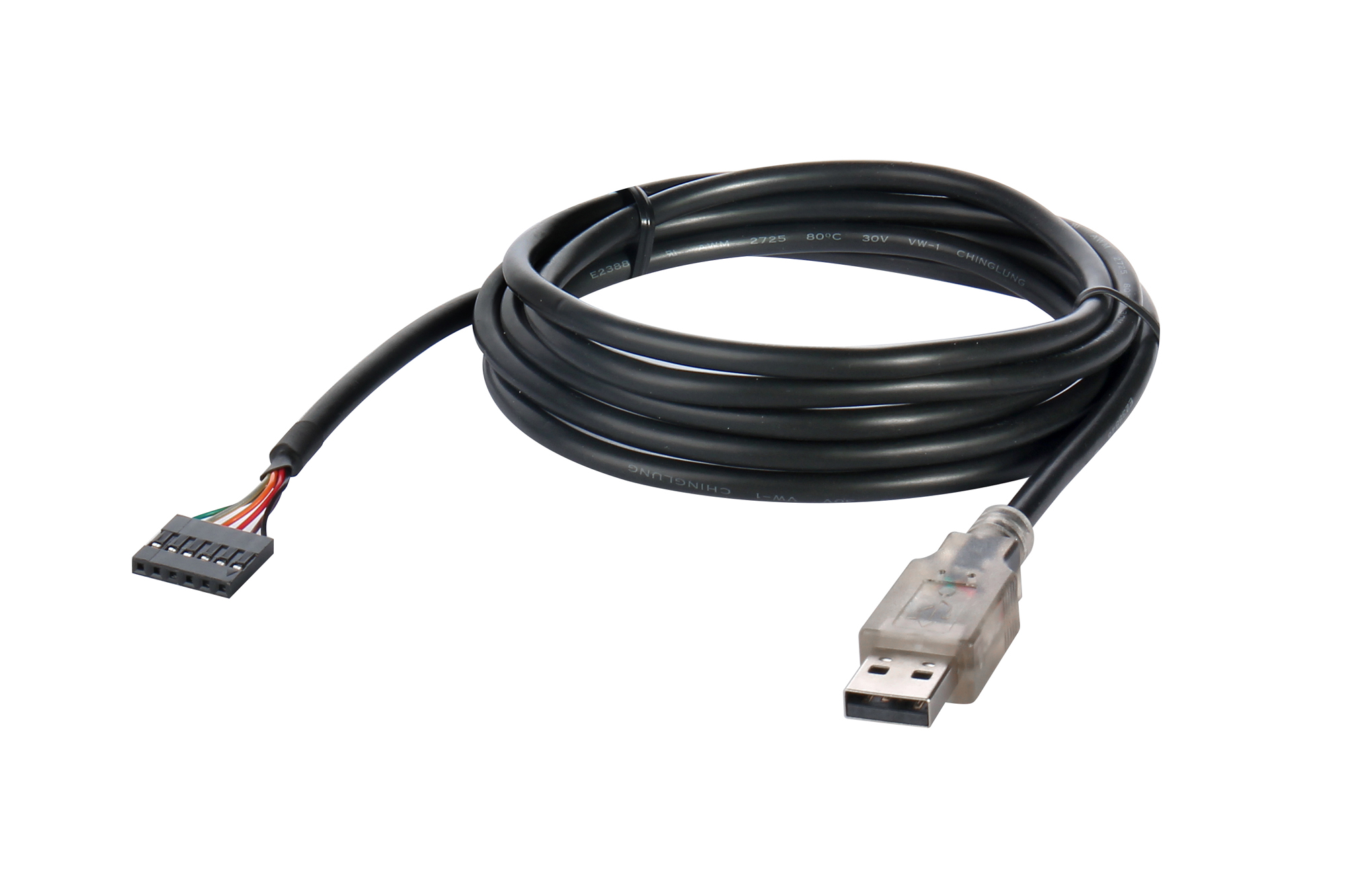

USB to UART with +3.3V & +5V TTL Adapter thru AP Control
USB to UART with +3.3V & +5V TTL Adapter thru AP Control
UTS-TTL2VUI
The USB to Serial UART (TTL level) adapter allows you to connect your computer through USB port and use it as a regular serial communication. All USB protocol is handled with this adapter thru AP control. This adapter is perfect for embedded systems that require a serial connection to a computer. It shows up on any Windows computer as a standard serial COM port. Any application that talks to this COM port is automatically converting to USB and back to UART to your target unit. Drivers are available for Windows 98SE / ME / 2000 / XP / Vista / 7 / 8 / 8.1 / 10 / 11; Mac OS 8.6 / OS 9.x / OS 10.x, Linux , Win CE, Win Server 2003 / 2008 / 2008R2 / 2012 / 2012R2 or higher.
Feature
Specification
Download
- Provides a USB to TTL Serial interface with various end connectors
- Enables to configure +3.3V or + 5V thru application program
- All in one solution for USB to asynchronous serial data transfer interface
- UART interface supports for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity
- Fully assisted hardware (RTS#/CTS#) or X-On / X-Off software handshaking
- Data transfer rates up to 3 Mbaud at TTL levels
- Transmitting and receiving LED indicators
- Supports +3.3V / 5V output to drive voltages optionally from +3.3V to +5V TTL inputs and delivers signal to target MCU
