USB-0824BC
USB-0824BC

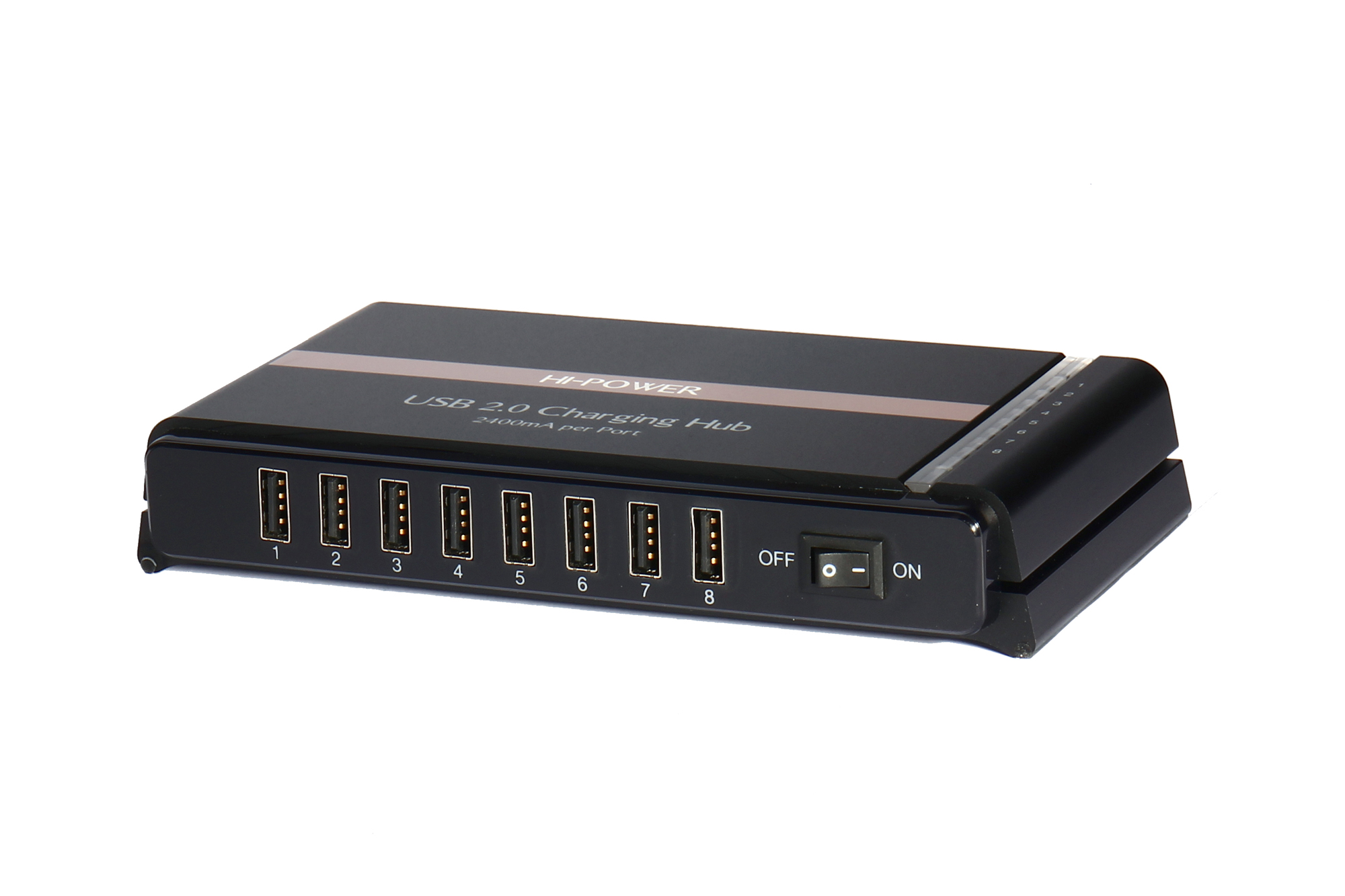

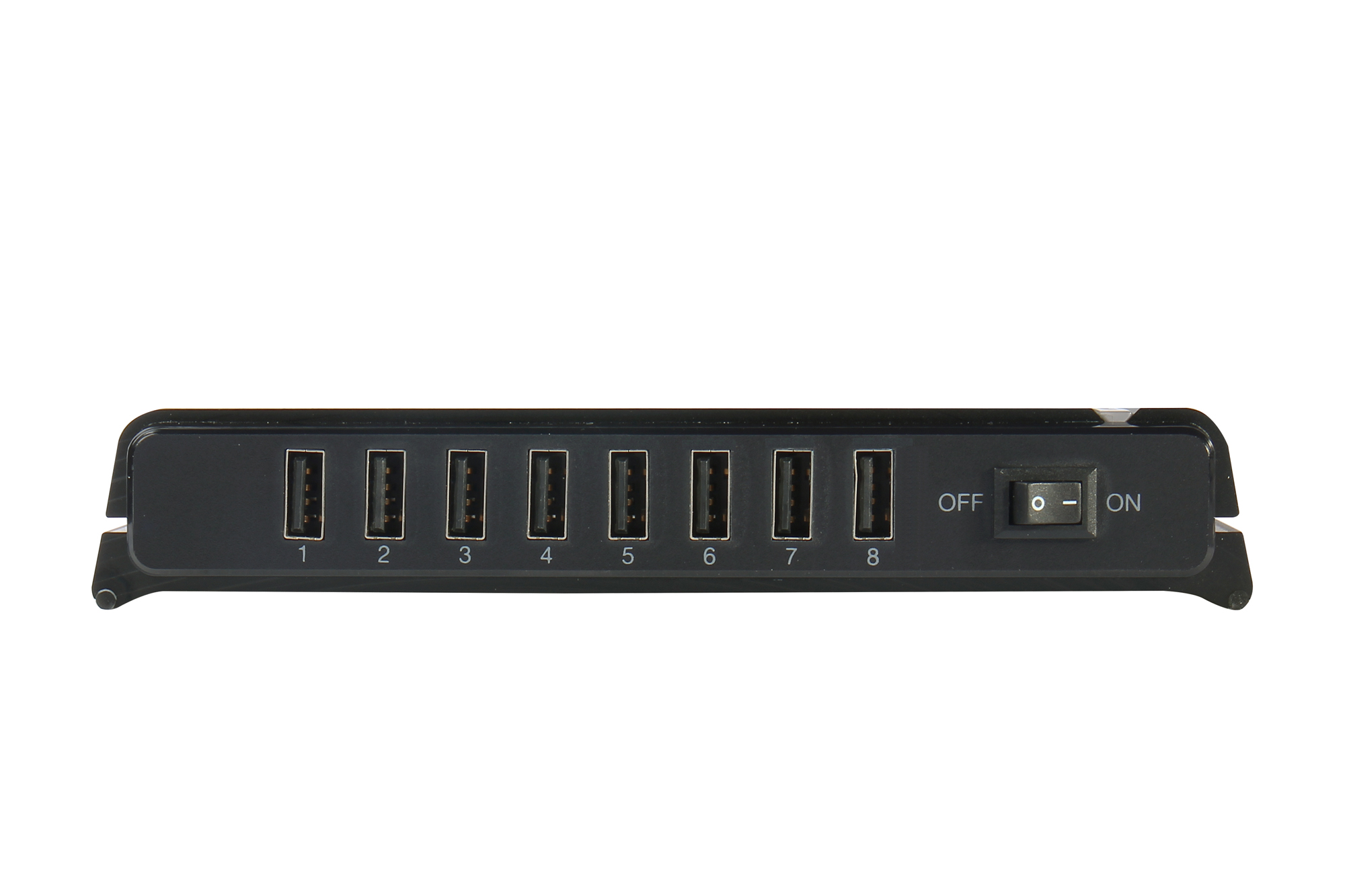

8-Port USB 2.0 Hi-Power Charging Hub
A solution for quick charging or sync up to 8 iPads, iPhones iPods and USB charging devices operating simultaneously; this is a perfect tool to effectively perform Sync/Charge Mode switching. Also is ideal for medium capacity USB station in-house that enables charging and syncing at a time. Places such as school’s classroom, businesses conference or meeting in organizations.
Feature
Specification
Download
- Compliant with USB Battery Charging Spec 1.2
- Enables to provide up to 1.5A at Sync (CDP mode) or 2.4A at Charge (DCP mode) output current on each port. Supports the iOS, Android devices
- Enables Sync/Charge mode switching upon manually connecting or disconnecting host port
- If all devices are fully charged at Charge Mode, the unit would cut off the ports LED & power automatically
- Intelligently detects the power current of each port by the sensing meter with firmware, and enables the port’s LED to illuminate its corresponding color
- Supports Over-Current Protection and ±15kV (air), ±8kV (contact) ESD protection on each port
- Supports 40A (5/50ns) & Peak Pulse Power 60W (8/20 us) Surge and Transient spikes protection on each port
- For the High-temp protection, if the unit’s high temperature is over the setting, it would cut off all the output current immediately
- At the mean time, the whole LEDs of the 8 ports would be green blinking

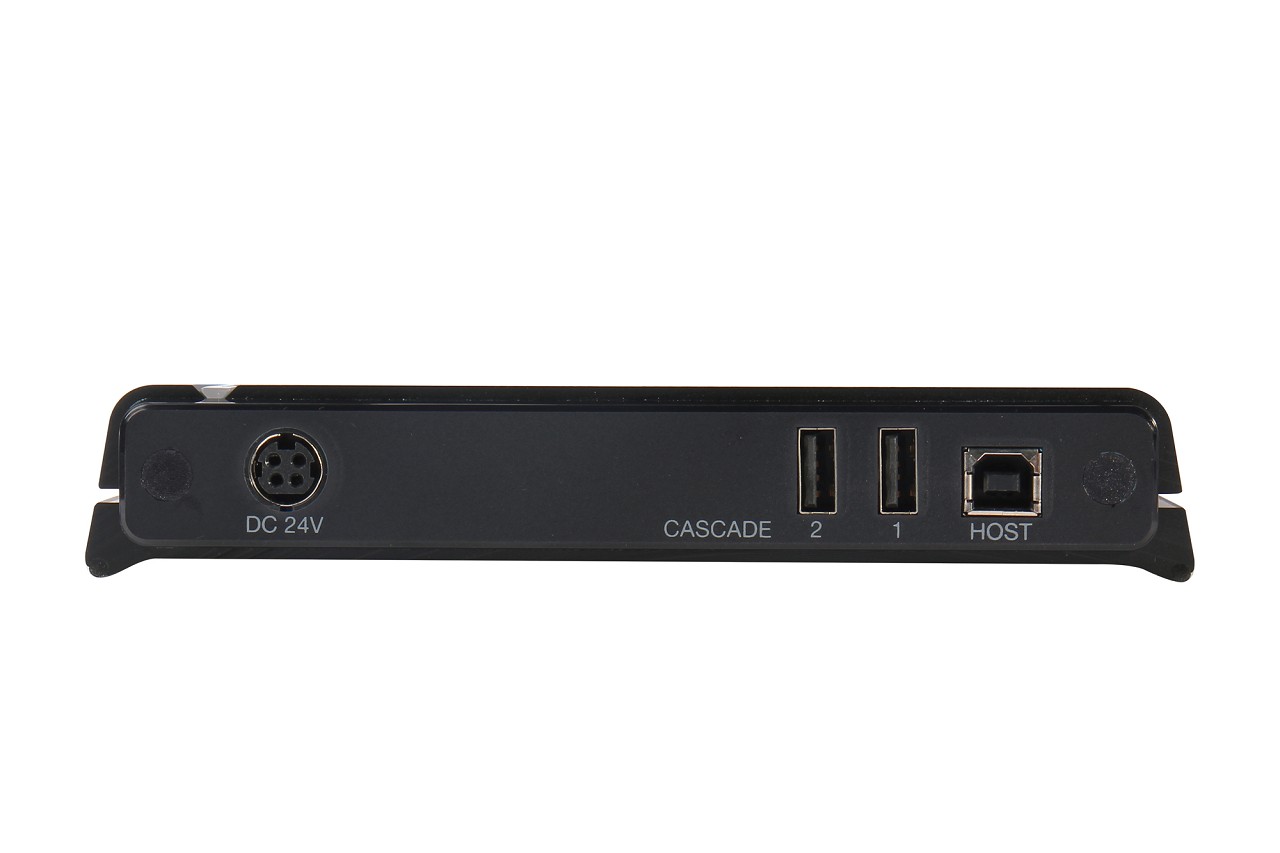

- It may daisy-chain cascade the 8-Port Charging hub up to 6 units. (Total 7 units connection)
