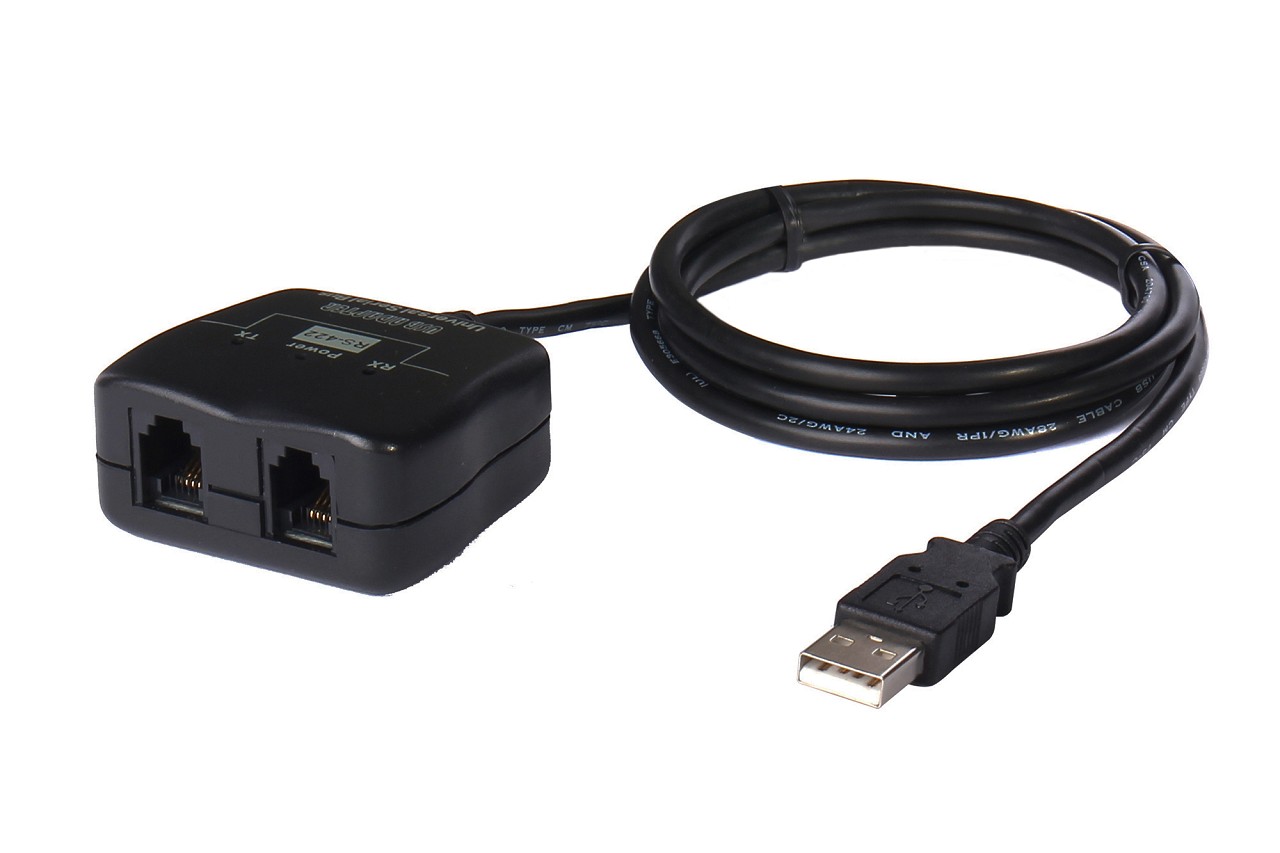

USB to RS-422 Adapter

USB to RS-422 Adapter

UTS-200J2XS

USB to RS-422 adapter provides an extra serial com port via USB connection and can be configured to work with RS-422 peripherals such as POS and industrial controlled devices. The USB adapter supports an easy serial port expansion and requires no IRQ, DMA, or I/O port resources.
It supports data transfer rates of up to 3M baud. It receives full power via the host USB connection, and provides power to the attached serial device without requiring an external power adapter.
  •  Feature
  •  Specification
  •  Download
  • Fully Compliant with USB specification 1.1 and 2.0.
  • Supports ±15kV HBM ESD Protected.
  • No external power supply required.
  • Supports data transfer rates up to 3M baud.
  • 512 byte receive buffer and 512 byte transmit buffer utilizing buffer smoothing technology to allow for high data throughput.
  • Supports remote wake-up and power-on-reset.
  • Compatible with Windows XP / Vista / 7 / 8 / 8.1 /10 / 11 or higher, Windows Server 2012 / 2012R2 / 2016 / 2019 / 2022 ; Mac OS 10.3 to 10.15 / 11 / 12 ; Linux OS 3.2 or higher.
