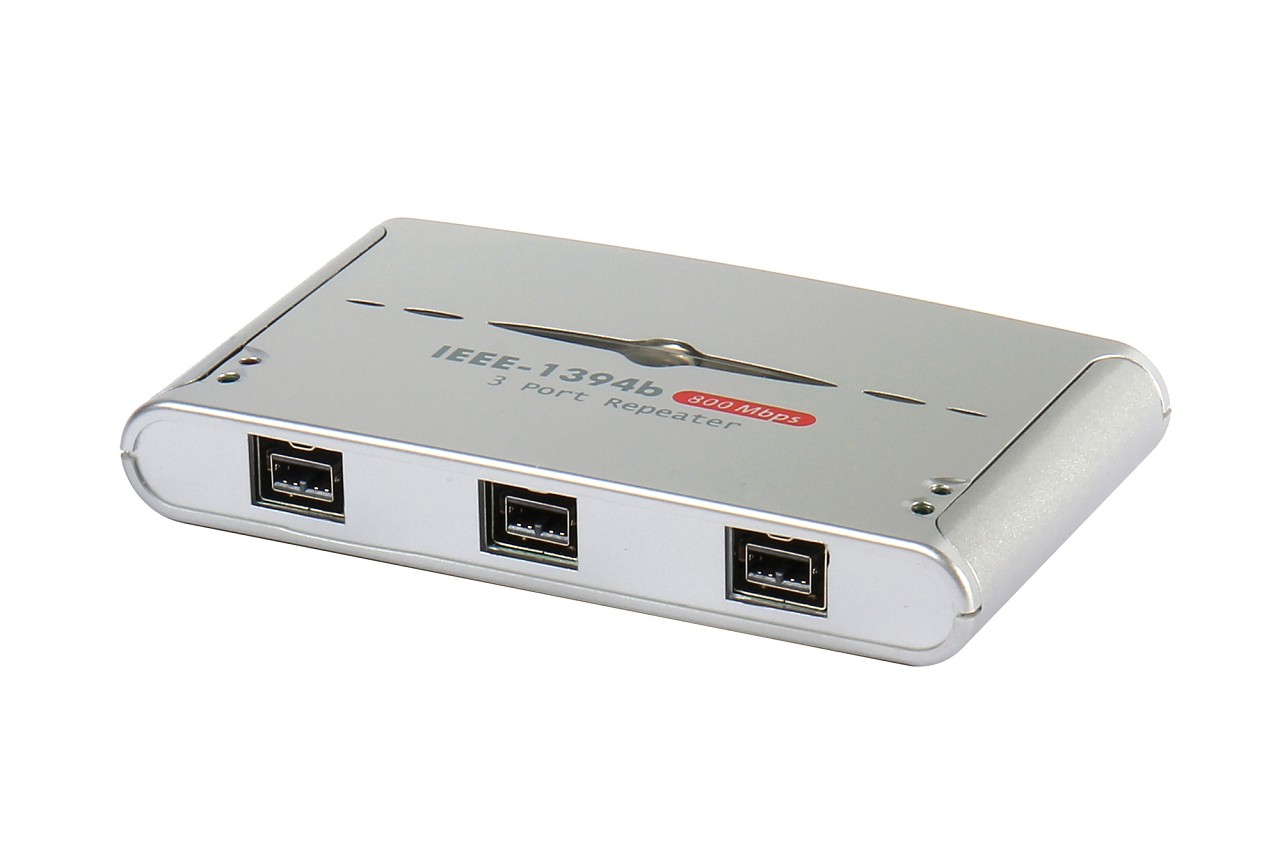

3-Port IEEE-1394b Repeater Hub
3-Port IEEE-1394b Repeater Hub
FW-300B

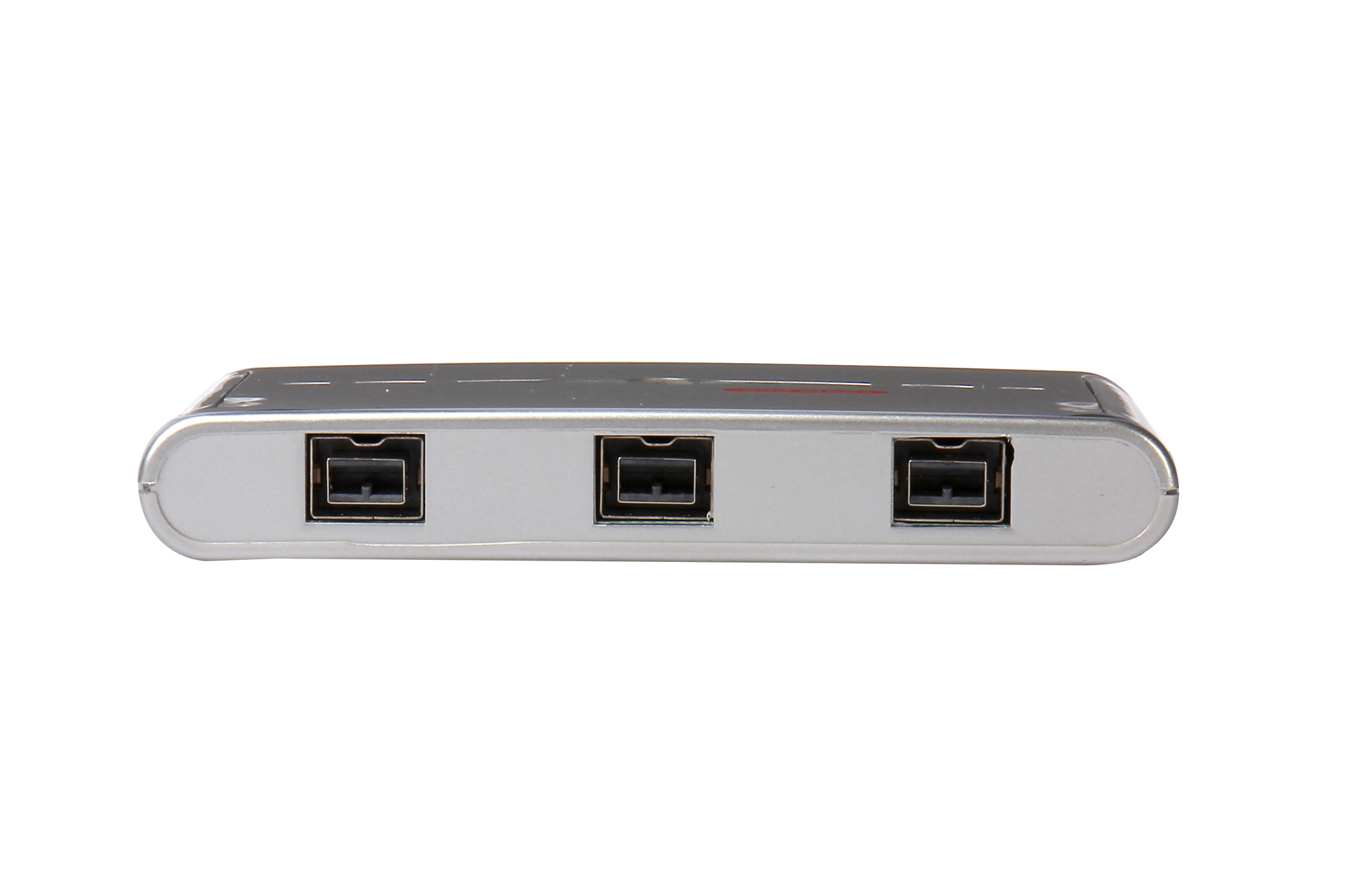

Provides port expansion on FireWire 800 IEEE-1394b device chains. The platform agnostic device provides three 9 pin (bilingual) IEEE-1394b ports with a maximum throughput of up to 800 Mbps each. The Hub utilizes IEEE-1394b bus power, or accepts an optional power adapter for use with devices requiring more power. Repeater hubs provide bus flexibility in that they allow for daisy chaining and/or hierarchical (tree) bus configurations. Repeater hubs also provide a means to lengthen the distance between devices when 1394b cable length of 4.5M (15 feet) is inadequate.
Feature
Specification
Download
- IEEE1394b & IEEE1394a compliant
- Supports data transfer rates of: 800, 400, 200 & 100Mbps

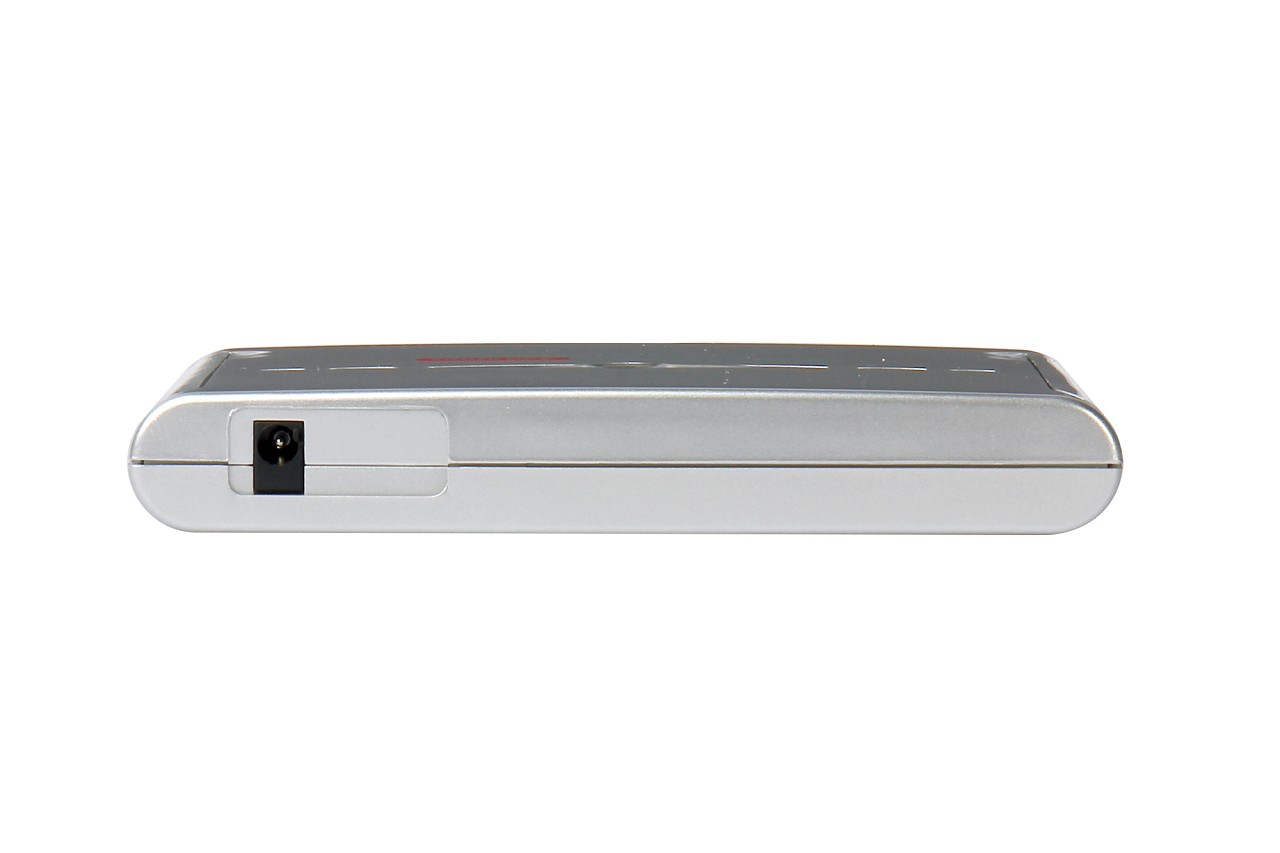

- Bus powered or self powered operation
- Hot plug and hot swap support
- Any port can be used to connect the computer or the devices
- Can be daisy-chained to support up to 63 devices
- Supports transfer distances of up to 4.5M
- LED power and port indicators
